About the Project

In this project a Demo is presented, which shows as an example an ETL process in which we use GNU-Health as data source and DHIS2 as destination.

Notes

This repository originates from two different GNU-Health servers which aim to simulate the data of two Faculties.

Environment and Configuration

Before you start, you need to have Docker installed.

All scripts are created with Python 3.9.

The versions of the libraries used were the latest currently available:

Getting Started

To start using this demo we need to create images of the GNU-Health Client, Tryton server, Postgres database and DHIS2.

To build the Tryton Server image, the following statement will be entered:

docker build -t opendx/gnu_health https://github.com/OpenDx28/gnu-health-server-docker.git#new_demo

GNU Health GUI consists of 2 steps:

1. docker build -t vnc-base https://github.com/OpenDx28/docker-vnc-base.git#:sr

2. docker build -t gnu-hc --build-arg BASE_IMAGE="vnc-base:latest" https://github.com/OpenDx28/docker-gnu-hc.git#:src

Postgres Database:

This image will be automatically downloaded later when you run docker-compose up -d.

DHIS2 To create the container we have to clone the repository found at this link:

https://github.com/paulavmf/opendx_course/tree/master/dhis2

Container_etl:

We have a dockerfile which will build an image of our container with all our scripts and csv:

to build it we will use:

docker build -t etl .

Once we have all the images and the DHIS2 repository, we will proceed to launch the following command which will bring up the whole system we need

docker-compose up -d

With everything up, these containers (Gnu-client, 2 tryton servers (one for each faculty), container_etl and dhis2) should be up and accessing the gnu client and DHIS2 system interfaces.

The last step would be to run our main.py file inside our container_etl, to launch the whole etl process and leave everything in its destination.

docker exec -it etl_container-1 python main.py

Note about windows

From the windows docker desktop itself we have an option to start and shut down the compose we have, from there we go into each of them and we can click on a link that will open the interfaces mentioned above.

Credentials:

gnu-client
■ user: admin
■ pass: gnusolidario

Dhis2
■ user: admin
■ pass: district

Container_etl

Connections

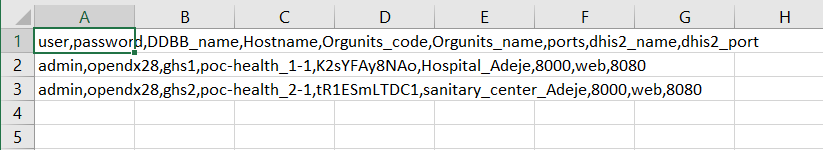

In our container we have a csv called datacon.csv in which we have all the information about the connection to our tryton server and DHIS2.

Datacon.csv

DHIS2

It may happen that you need to enter the dhis2 metadata once the container is up, then you should enter dhis2 and insert the files you have in the folder metadata folder and insert them in their order.

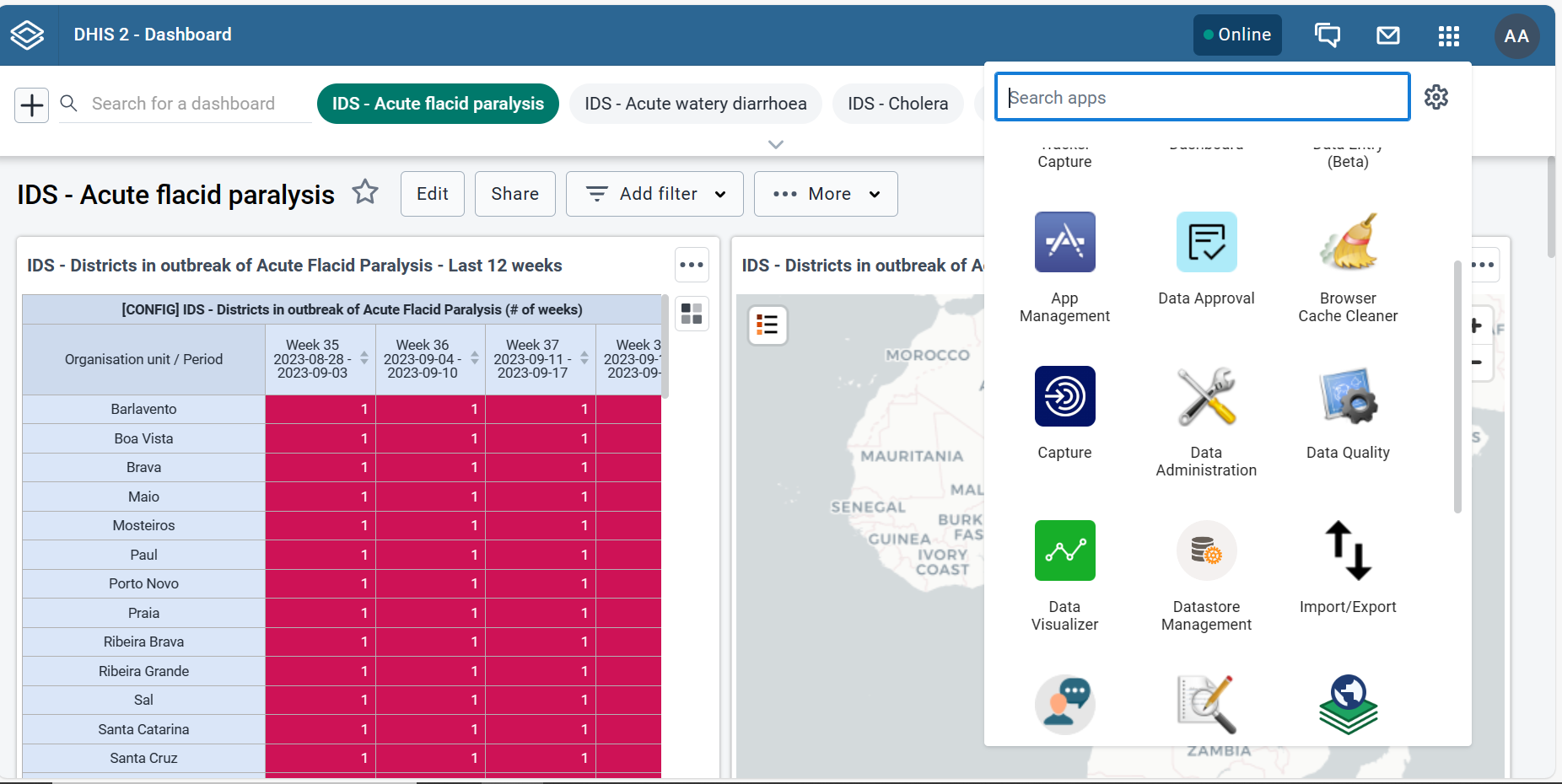

In the right panel we should look for Import/export and click on

Datacon.csv

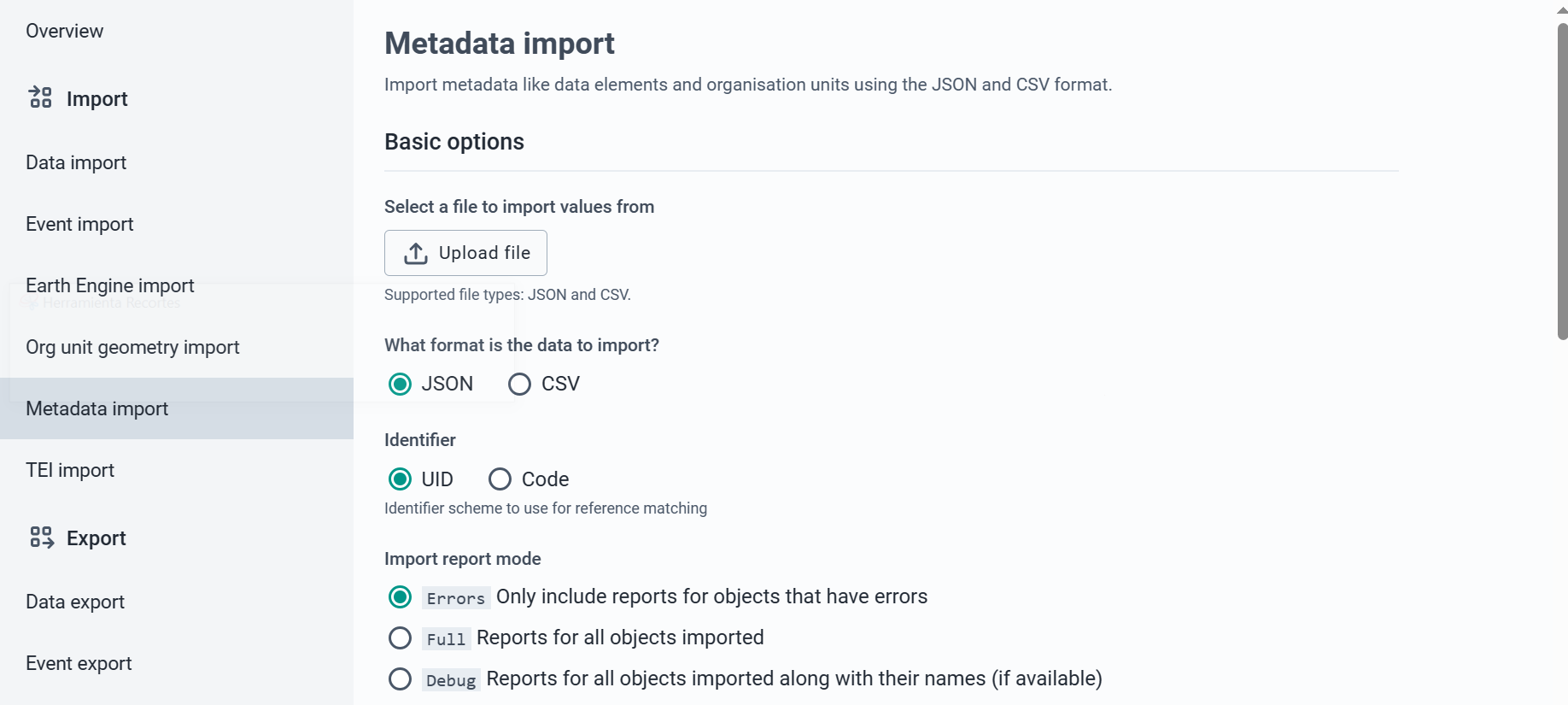

once inside in the metadata import section, you will see a window like this, now you must select the files one by one and click on upload file.

Datacon.csv

When we have finished we can see that several dashboards are loaded and we have some datasets, orgunit, dataelement, etc…

Necesary action after import data from ghnuHealth

in dhis2 go to Data Administration Analytics table and click on start export

Extra documentation(HTML)

Finally, documentation on scripts, functions and code variables has been uploaded in various html. to be able to visualize it, click on the home page and the readme opens again, go down to the end and enter in the index of the html.
